SPECIFICATIONS

Average Life (hrs): More than 50000Hours

Brand Name: TNALANT

Certification: CCC,ce,FCC,ROHS

Color Temp(K): 3000-6500k

Hign-concerned Chemical: None

Is Batteries Included: No

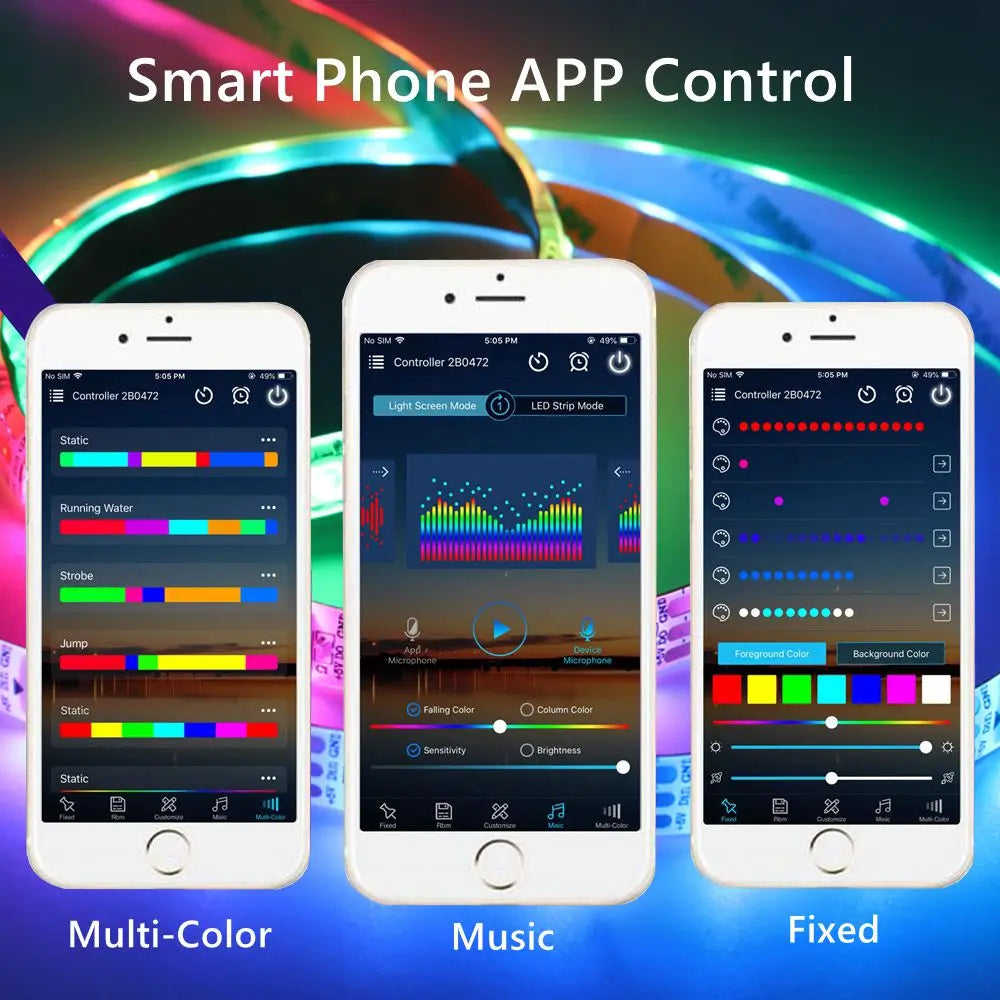

Is Smart Device: Yes

Item Type: Strip

LED Chip Brand: Epistar

LED Chip Model: SMD5050

LEDs Number/M: 30/60/144leds/m

Luminous Flux: 249-2000

Model Number: WS2812b

Occasion: LIVING ROOM

Origin: Mainland China

Power Consumption (W/m): 11.52W/m

Power Generation: Switch

Power Source: DC

Specifications (light beads / m): 30/60/144

Strip type: SMD

Voltage: 5V

Waterproof: Yes

Pay attention：

1. Led strip welded by 0.5m is very normal in an electronic product,not a quality problem.if you mind this, do not place order！

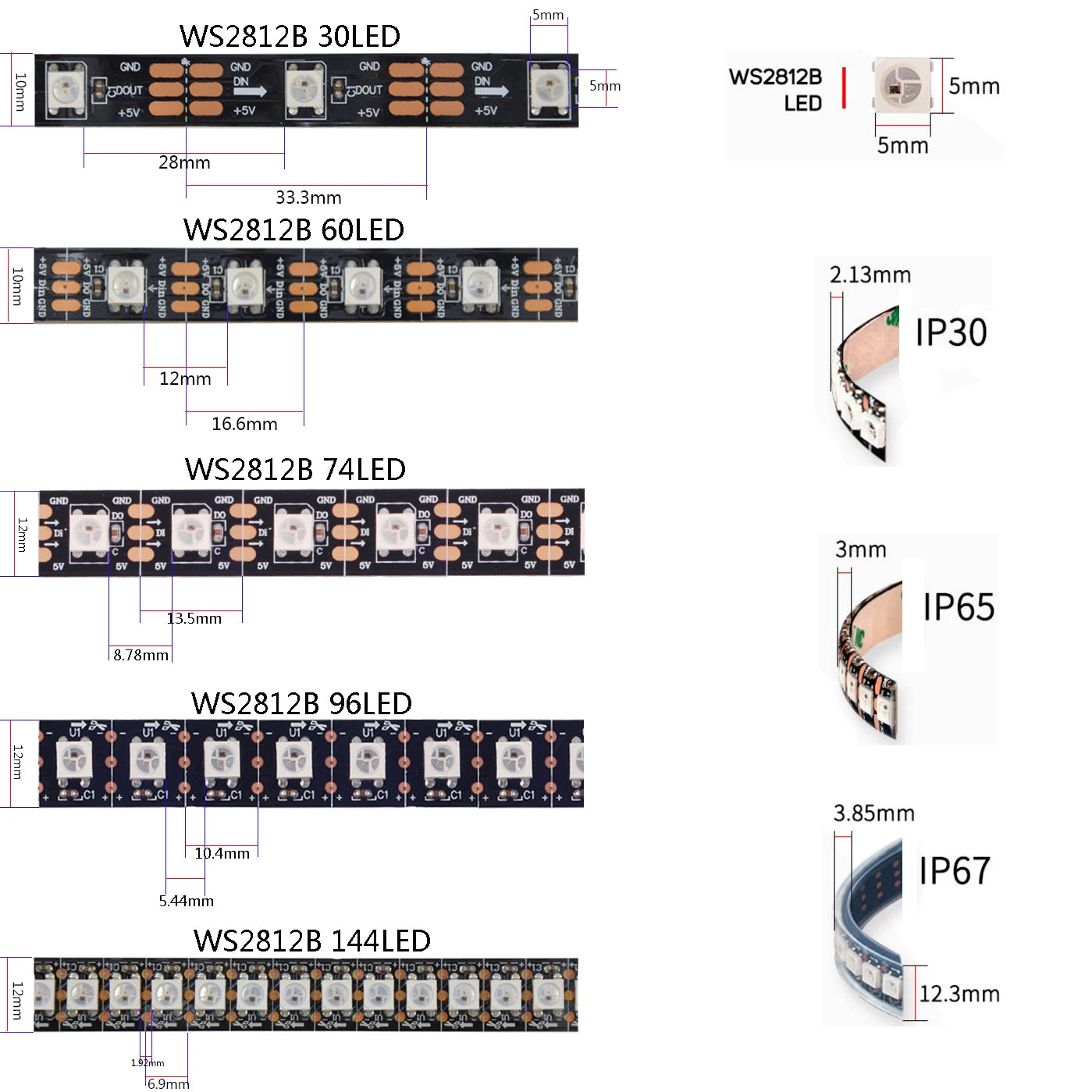

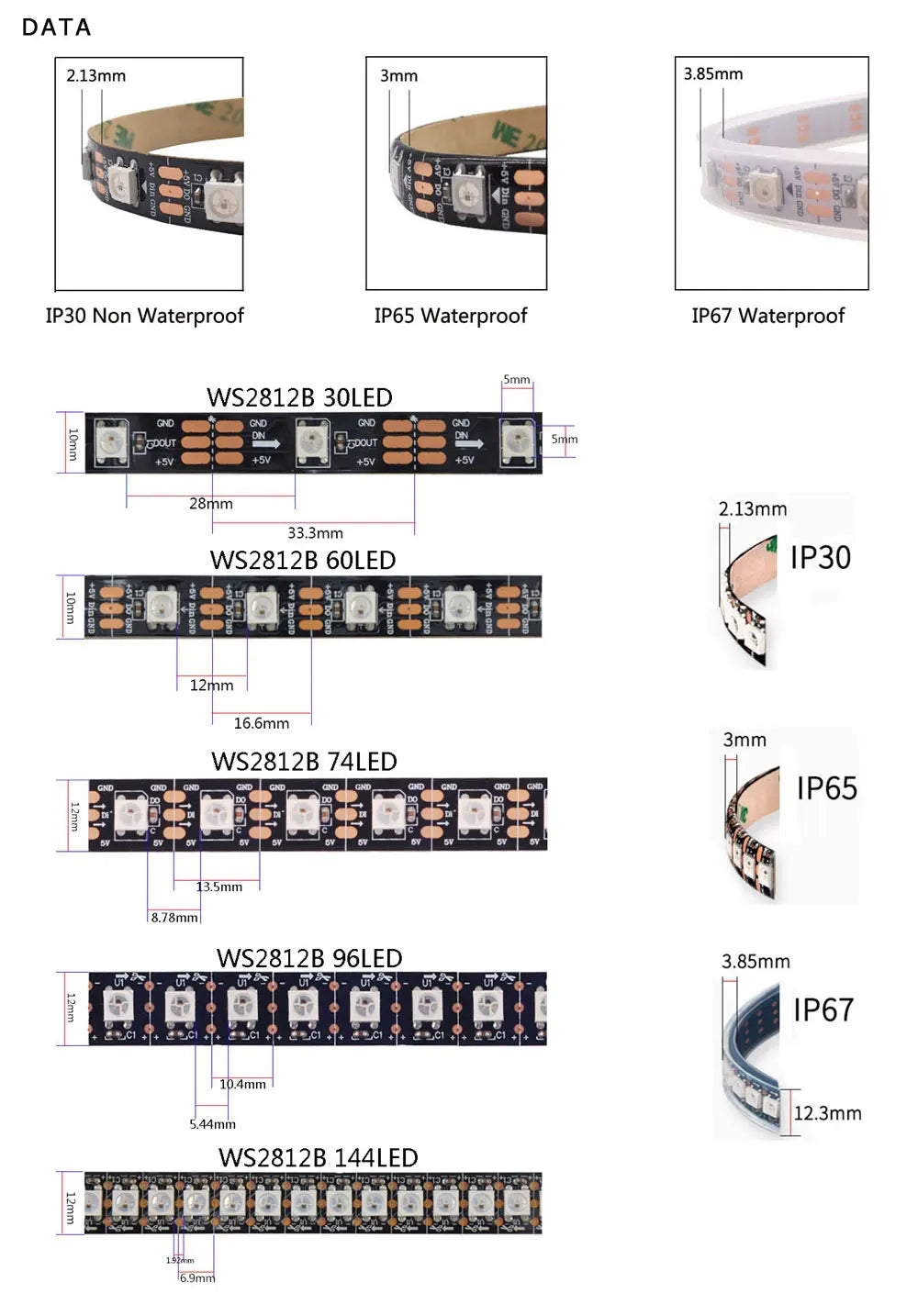

2. IP30: Non- Waterproof
IP65: Waterproof in Silicon Coating
IP67: Waterproof in SiliconTube
this link is not include power supply ,please know it

Pay Attention

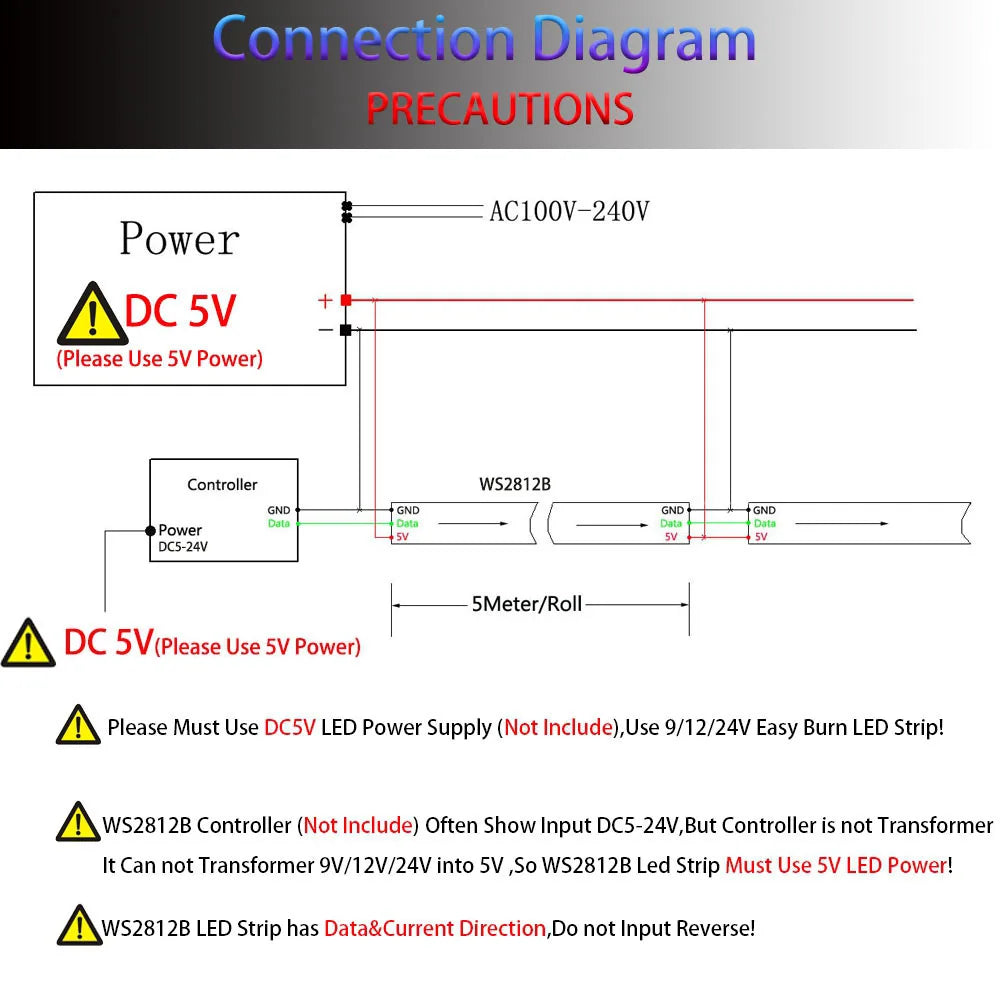

(Important: WS2812B Must Work With 5V LED Power Supply,Over DC5.5V Will Burn Led Strip)

Product Decsription:

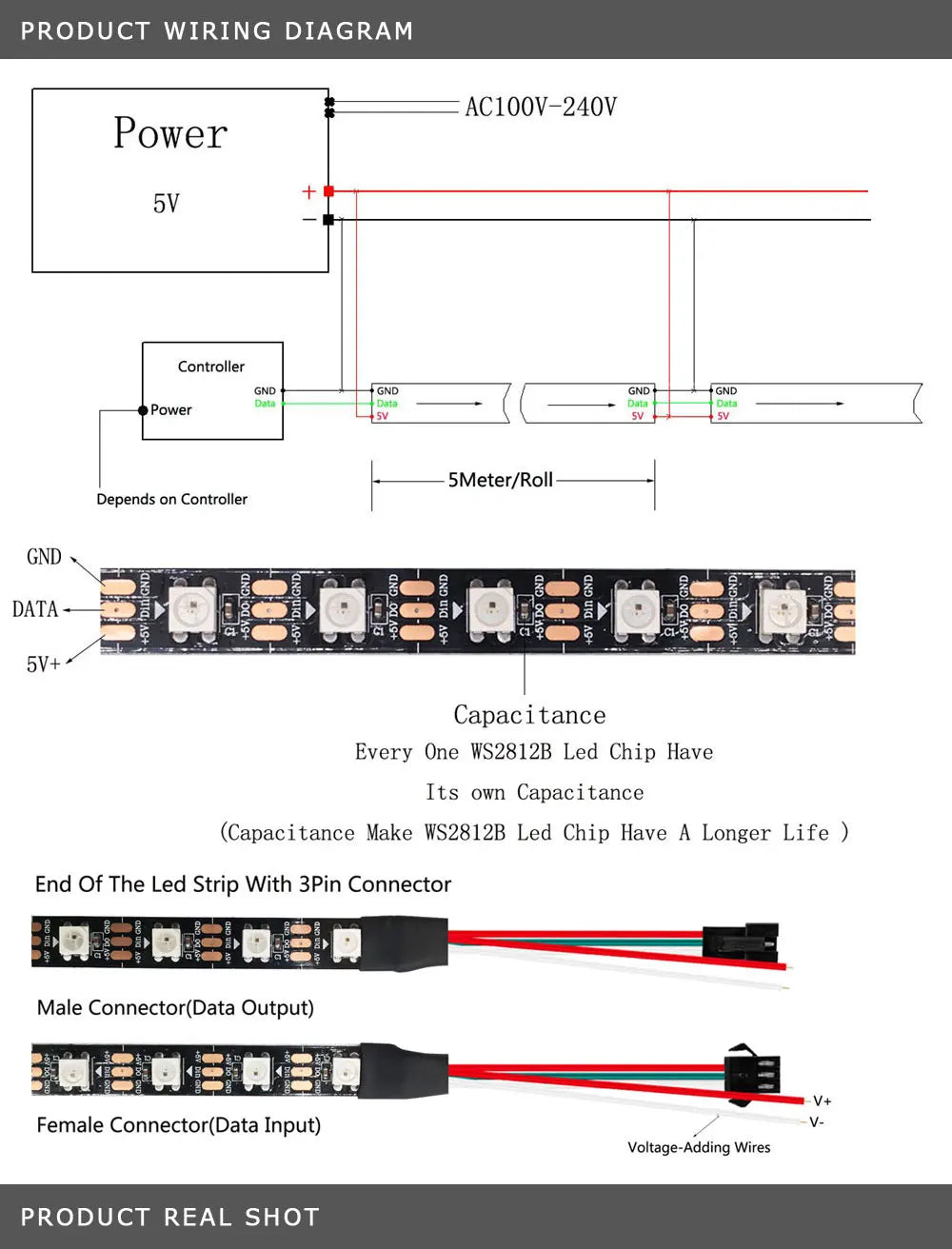

1. 3-Pin JST Connector Included: Red:VCC, Withe:GND, Green:DATA.

2. The Strip Has 3M Adhesive Tape On The Back(Except Ip67). Installation Surface Must Be Smooth, Clean And Dry.

3. Led Strip Can Be Cut Between Every Led To Create Custom Lengths.

4. Do Not Bend Strip Sharply.

5. Longer Runs Should Be Powered From Both Ends To Reduce Voltage Drop.

6. 3-Pin JST Connector Wire is 20AWG.

Products Application:

WS2812B Dream Color Strips Can Be Used For TV Hotel, KTV, Bar, Game Room And Other Leisure, Entertainment Decoration To Heighten The Atmosphere, Car Chassis, Car Decoration, Shop Decoration, Home Decoration And Other Decoration.

Product Details:

Input Voltage: DC5V

Power: 30Leds/m----9Watt/meter

60Leds/m----18Watt/meter

144Leds/m----43.2Watt/meter

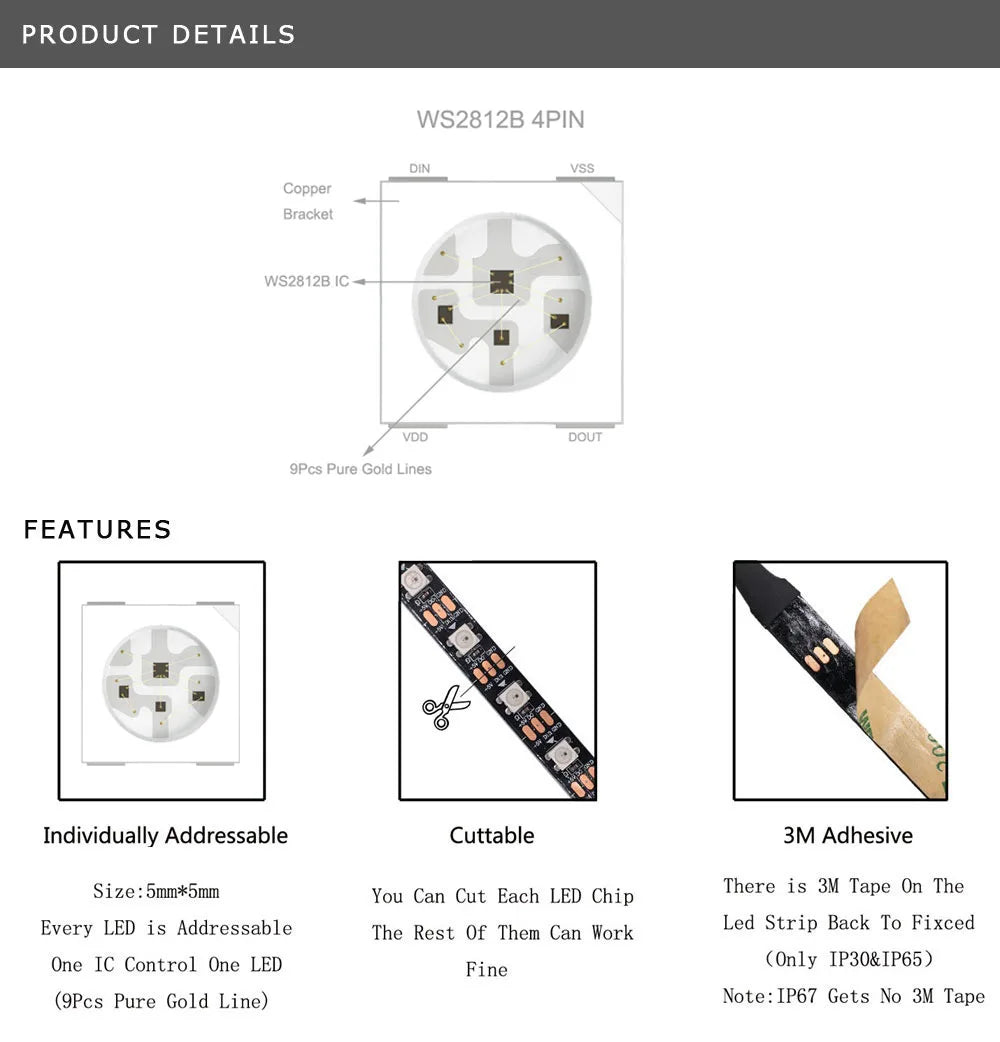

LED Resource: WS2812B Led(5050 SMD RGB LED With Built-in Improved Version Of WS2811 IC)

LED: Each Led is Separately Controlled

IC Type: Improved Version WS2812 IC(Built Inside The 5050SMD RGB LED)

Of IC: 1 IC Drives 1 Led Chip

Pixels: 30/60/96/144/Meters

Pitch: 16.6mm(1000/64)

Grey Scale: 256
